OAM PS3 State-of-the-art

An attempt to run OAM 11G Release 2 PS3 on Oracle Linux 6.7, WLS 12C, RDBMS 12C.

Install Linux

Pretty straightforward. Used Oracle 6.7, as 7 is not certified. Create a 200MB /boot, and an LVM for /, both ext4. Install just the server. Deselect *all* options, just X system and X legacy support (the OUI needs it). Some 566 packages will get installed. Make sure it boots, and the network starts.

Linux Maintenance

Change /etc/sysconfig/selinux to read

SELINUX=disabled

I needed to use

ifup eth0

Address that by editing /etc/sysconfig/network-scripts/ifcfg-eth0 and change

ONBOOT=yes

Update to the latest:

yum update

Reboot...
As a pleasant surprise, my 6.6 was updated to 6.7, according to the boot messages.
Then, log in as root again, and start preparing for installs:

yum install oracle-rdbms-server-12cR1-preinstall

Also, add the following to /etc/sysctl.conf:

# IPv6 disabled net.ipv6.conf.all.disable_ipv6 = 1 net.ipv6.conf.default.disable_ipv6 = 1 net.ipv6.conf.lo.disable_ipv6 = 1

As the oracle preinstall alters you grub, you do want to... reboot.

Oracle installs

[root@tvs ~]# mkdir /oracle [root@tvs ~]# chown oracle:oinstall /oracle [root@tvs ~]# passwd oracle Changing password for user oracle. New password: Retype new password: passwd: all authentication tokens updated successfully.

As oracle:

[oracle@tvs ~]$ mkdir /oracle/depot

Mount my private storage:

[root@tvs ~]# mount -o soft,intr,rsize=8192,wsize=8192,nolock 192.168.4.198:/volume2/oracle/Software /oracle/depot

Database

/oracle/depot/12G/database/runInstaller - fails with

"PRVF-0002: could not retrieve local node name".

I have to modify the hosts file (/etc/hosts), and add the current ip address and host name. I chose just to install the software, for a single instance database, changed the base to /oracle/app, and that changes the db software location to /oracle/app/product/12.1.0/dbhome_1. All else remains default.
Alter .bash_profile:

# Additional stuff export ORACLE_HOME=/oracle/app/product/12.1.0/dbhome_1 export PATH=$ORACLE_HOME/bin:$PATH export TNS_ADMIN=$ORACLE_HOME/network/admin

Java

Install the latest Java JDK; WLS 12C needs a development environment...

tar zxf /oracle/depot/weblogic/jdk-8u51-linux-x64.tar.gz -C /oracle mv /oracle/jdk1.8.0_51/* /oracle/java/

Alter .bash_profile, source it, and check:

export JAVA_HOME=/oracle/java/jre export PATH=$JAVA_HOME/bin:$PATH [oracle@tvs] . .bash_profile [oracle@tvs] java -version java version "1.8.0_51" Java(TM) SE Runtime Environment (build 1.8.0_51-b16) Java HotSpot(TM) 64-Bit Server VM (build 25.51-b03, mixed mode)

This version is not aligned with the installers, these make Java throw this warning:

Java HotSpot(TM) 64-Bit Server VM warning: ignoring option MaxPermSize=512m; support was removed in 8.0

Use netca to create a listener, or manually, if you like that:

[oracle@tvs ~]$ cat /oracle/app/product/12.1.0/dbhome_1/network/admin/listener.ora # listener.ora Network Configuration File: /oracle/app/product/12.1.0/dbhome_1/network/admin/listener.ora # Generated by Oracle configuration tools. LISTENER = (DESCRIPTION_LIST = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = tvs)(PORT = 1521)) ) )

If you want to cut-n-paste the above code, make sure to manually start the listener, using lsnrctl start.

Repository Creation Utility

/oracle/depot/OFM/11.1.2.3.0/rcu_linux_11.1.1.9.0_64/rcuHome/bin/rcu

OK, that has no problems installing against a 12C database. I heart (never seen it, though) that previous versions would not install against 12C.

Weblogic 12C

java -jar -d64 /oracle/depot/weblogic/fmw_12.1.3.0.0_wls.jar

Do NOT start the Configuration Wizard. Also, make sure, this is the first install in your middleware home - WLS refuses to install in a non-empty location.

OUD

Has been done before, nothing new, but for the Java version used here.

/oracle/depot/OFM/11.1.2.3.0/oud_11.1.2.3.0/Disk1/runInstaller -jreLoc $JAVA_HOME

Just as well create an instance, as described here.

OAM

Has been done before, too. Refer to that blog entry.

Redo...

WLS12C does NOT work with OAM. The config.sh never comes to an end other than "Too many parameters". Besides, it's not certified according to the matrix, as is Java 8 (Java 8 is not certified, that is.) So, I guess state of the art is Linux 7 (yes - that is certified!), WLS 10.3.6.11, Java 7 update 80.

OAM PS3 - continued

Allow auto start (production mode) for your scripts:

cd /oracle/user_projects/domains/oam_domain/servers mkdir -p oam_server1/security mkdir -p omsm_server1/security mkdir -p oam_policy_mgr1/security vi oam_server1/security/boot.properties cp oam_server1/security/boot.properties omsm_server1/security/ cp oam_server1/security/boot.properties oam_policy_mgr1/security/

You can now use command line scripts to start the other servers (oam_server1, omsm_server1, and oam_policy_mgr1), like so:

/oracle/user_projects/domains/oam_domain/bin/startManagedWebLogic.sh oam_server1

Starting using WLS Console (GUI)

In the OAM 11GRel2PS2 setup, I created a "machine". This is not a physical machine, just a weblogic placeholder. I need one to allow the nodemanager to start/stop all servers.
If I don, I will get these messages trying to control (start/stop) a managed server via de admin server console:

So, login on the console, choose to expand the Environment, click the "Lock & Edit' button, and create e New Machine:

Name does not really matter, as said, it is just a place holder, and bears no connection to ant (physical) machine whatsoever. Leave OS type to Other; it is not Unix, and it is not Virtual (it is Linux).
Next, define the nodemanager. By default the nodemanager is created to listen in SSL mode, and it will listen on all addresses, so localhost should do.
In a serious clustered environment, you want to change the nodemanager to listen to the machine name or address, not just localhost - if you would, the nodemanager would not accept calls from the other cluster members.

Now, you can add the Admin, and managed servers to this machine, and control these from the GUI as well. Next task will be protecting resources.

refhost.xml kludge is fixed

No More missing packages

I wrote several times about manually editing refhost.xml. There's not need for it, just apply Patch 18231786.

Wrong Java version on Unified Directory Server

Wrong version Java

After losing the battle with the OS guys for control over java, I keep stumbling upon environments that have wrong java versions due to the fact java is installed in /usr/java, or /usr/bin.
In such cases, this is the result:

which java /usr/bin/java

As I do not have control over /usr/bin, I install java in /oracle/middleware/java, so I would like

which java /oracle/middleware/java/jre/bin/java

Adapting OUD

Luckily, adapting OUD to use another Java proves quite easy; just alter $MW_HOME/asinst_1/OUD/lib/set-java-home and $MW_HOME/asinst_1/OUD/config/java.properties to point to the correct java environment, and bounce the ldap server.

OAM PS3

Identity and Access Management Patch Set 3

It has been launched last week. I have seen it in March, during a partner event in Paris, and there are quite a few changes and improvements to get exited about.

Install over previous (not upgrade)

I cloned my PS2 OAM machine, and the plan is to get PS3 running asap. So, I fire up the V11.1.1.9 RCU, and drop the existing schemas.

Next, rerun the RCU, and create the schemas:

Note the Mobile Security - that's new...

Install OUD V11.1.1.9.0

Yep - that's new as well...

[oracle@oam ~]$ /mnt/orainst/Software/OFM/11.1.2.3.0/oud_11.1.2.3.0/Disk1/runInstaller -jreLoc $JAVA_HOME

Install WebLogic

Same as before, 10.3.6.0 - but with a load of patches. These will require you run JSSE!
A list of patches (but hold on downloading each of these!) :

18398295 (FSG4)
        This Oracle WebLogic Server patch is required only if you are using
        Multi Byte Character Set.

Bit of an odd remark for an OAM installation guide, as OAM practically dictates you use AL32UTF8 for the standard characterset in your repository database.

14404715 (ZARV)        This is a mandatory Oracle WebLogic Server patch.

16844206 (NPM3)        This is a mandatory Oracle WebLogic Server patch.

Looks like that is only on MS Win, as the description is "WLST CANNOT GET ENV ON WINDOWS SERVER 12 WITH MINIMAL ENV"

13964737 (YVDZ)        This is a mandatory Oracle WebLogic Server patch when running
Oracle WebLogic Server on Oracle JDK 7.
After you apply this patch to your WebLogic Server Middleware home, you must start
the Node Manager, the WebLogic Administration Server, and the various Managed Servers
with Java Secure Socket Extension (JSSE) enabled. To start the Node Manager with JSSE
enabled, see the "Set the Node Manager Environment Variables" topic in Node Manager
Administrator's Guide for Oracle WebLogic Server.

After starting Node Manager with JSSE enabled, you must start the
WebLogic Administration Server and Managed Servers with JSSE enabled.
For more information, see the "Using the JSSE-Enabled SSL Implementation" topic in
Securing Oracle WebLogic Server.

14174803 (IMWL)        This is a mandatory Oracle WebLogic Server patch when running
Oracle WebLogic Server on Oracle JDK 7.
After you apply this patch to your WebLogic Server Middleware home, you must start
the Node Manager, the WebLogic Administration Server, and the various Managed Servers
with Java Secure Socket Extension (JSSE) enabled. To start the Node Manager with JSSE
enabled, see the "Set the Node Manager Environment Variables" topic in Node Manager
Administrator's Guide for Oracle WebLogic Server.

After starting Node Manager with JSSE enabled, you must start the
WebLogic Administration Server and Managed Servers with JSSE enabled.
For more information, see the "Using the JSSE-Enabled SSL Implementation" topic in
Securing Oracle WebLogic Server.

17938462 (XECL)         This is a mandatory Oracle WebLogic Server patch when running
Oracle WebLogic Server on Oracle JDK 7.

13114768 (56MM)        This is a mandatory Oracle WebLogic Server patch.

15865825 (CM69)        This is a mandatory Oracle WebLogic Server patch.

14809365 (XA6W)        This is a mandatory Oracle WebLogic Server patch.

Apart from all that, I would also apply 20181997 (YUIS): WLS PATCH SET UPDATE 10.3.6.0.11

Install OAM

[oracle@oam ~]$ /mnt/orainst/Software/OFM/11.1.2.3.0/Disk1/runInstaller -jreLoc $JAVA_HOME

You no longer need to kludge the refhost.xml file:

WLS Patching

cd /oracle/middleware/utils/bsu mkdir cache_dir cd cache_dir unzip /mnt/orainst/Software/weblogic/p20181997_1036_Generic.zip cd .. ./bsu.sh -install -patch_download_dir=/oracle/middleware/utils/bsu/cache_dir -patchlist=YUIS -prod_dir=/oracle/middleware/wlserver_10.3

Remove README.txt from the cache_dir, and repeat for

• p17938462_1036_Generic.zip (XECL)
• p13964737_1036_Generic.zip (YVDZ)

There is no need for

• p15865825 (CM69)
• p14809365 (XA6W)
• p14404715 (ZARV)
• p14174803 (IMWL)

as they conflict -or better: are resolved by- YUIS.
See MOS DocID 1997891.1 (bugs resolved by WLS 10.3.6.0.11).

p13114768_1036_Generic.zip (56MM) is not listed in this document, yet reports it cannot co-exist with YUIS:

[oracle@oam bsu]$ ./bsu.sh -install -patch_download_dir=/oracle/middleware/utils/bsu/cache_dir -patchlist=56MM -prod_dir=/oracle/middleware/wlserver_10.3 Checking for conflicts... Conflict(s) detected - resolve conflict condition and execute patch installation again Conflict condition details follow: Patch 56MM is mutually exclusive and cannot coexist with patch(es): YUIS

Configure

OUD

OUD - has been done on previous entries. Some things have changed; the default memory assignments could be a bit less (although I could not get them below 1GB initial). Also, there's the possibility for DIP integration directly in OUD (i.e. not needing the ODSM weblogic stack???):

OAM

Has also been done before, but there are slight differences:

All I chose here, was Oracle Access Management and Mobile & Social (renamed from Oracle Access Management), as well as the Entitlement Server for Admin server.
Do NOT start the OAM stack, yet! You (still) need to follow chapter 11 "Configuring Database Security Store ... "

cd /oracle/middleware/oracle_common/common/bin ./wlst.sh /oracle/middleware/Oracle_IDM1/common/tools/configureSecurityStore.py \ -d /oracle/user_projects/domains/oam_domain -c IAM -m create -p [your OPSS password]

Start it up

Enable autostart (Production Mode)

cd /oracle/user_projects/domains/oam_domain mkdir -p servers/AdminServer/security vi servers/AdminServer/security/boot.properties /oracle/user_projects/domains/oam_domain/startWebLogic.sh

One thing that I noticed, was the amount of logging during the initial startup: it has been decreased enormously! You will see

SEVERE: Failed to communicate with any of configured Access Server, ensure that
 it is up and running.

, but that is an configuration issue that I will take care of. Several other errors (Primary Keys violated...) seem to have no effect; after about 5 minutes, I can login to the new interface (yet again...):

There are a lot of defaults now standard available, which you used to have to think of in the previous release; even the dreaded favicon is now excluded. Happily surprised!

Getting rid of the SEVERE error

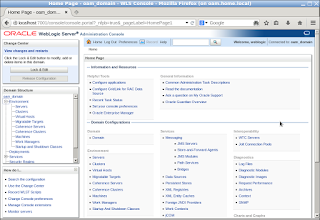

Login to the WLS console (http://your_oam_host:7001/console), navigate to the security realm MyRealm, go to the Providers tab, and delete IAMSuiteAgent:

You will have to stop and start the Admin Server...

Finalize WLS Patching

One of the results of patching WLS is the prerequisite to use JSSE. The easiest way is to set the "Use JSSE" flag for all managed servers (WLS console, Lock and Edit, Environment, Servers, Select a server, navigate to the SSL tab, scroll to the bottom, click 'Enhanced', and -at the bottom- enable JSSE). After applying the changes, stop all servers.
For the node manager, edit the startNodeManager.sh script and add the following lines somewhere at the top of the file:

JAVA_OPTIONS="-Dweblogic.ssl.JSSEEnabled=true" export JAVA_OPTIONS

Somewhere around line 40 will do. File is located at /oracle/middleware/wlserver_10.3/server/bin/startNodeManager.sh
For all other, command line initiated scripts, introduce the following environment variables:

JAVA_OPTIONS="-Dweblogic.ssl.JSSEEnabled=true" export JAVA_OPTIONS

Starting the admin server will show this is the logging:

Starting WLS with line:
/oracle/jdk1.7.0_76/bin/java -server   -Xms1024m -Xmx2048m -XX:PermSize=256m -XX:MaxPermSize=512m
-Dweblogic.Name=AdminServer -Djava.security.policy=/oracle/middleware/wlserver_10.3/server/lib/weblogic.policy
-Dweblogic.ProductionModeEnabled=true -Dweblogic.ssl.JSSEEnabled=true

Access Denied - Access to administration console is restricted

Access Denied - Access to administration console is restricted.

Ran into it, today. Again. This time, I'll make a proper blog entry, not like this one...
This time, I actually did follow my own advice, but for the fact, I now am working in a multi-homed WebLogic environment - I simply pasted the wrong WLS home...

Retrieving OAM keystore password

How to retrieve the password of OAM keystore

If you ever need it; the password of the default OAM keystore password (which is generated) can be retrieved using:

cd /oracle/middleware/oracle_common/common/bin ./wlst.sh connect(); domainRuntime() listCred(map="OAM_STORE",key="jks")

Would you like to change it, use

resetKeystorePassword()

BEA-090898 during PlugIn activation in clusters

Be Secure

I did not mention it in my not so "OAM-in-a-day" entry, but when you run a clustered environment, make sure to set the "Secure" flag on the AdminServer and Managed Server configuration screens. It does have more impact that setting the "Use JSSE" flag on the SSL/Advanced section of the Weblogic console, but when you failed to do so, that's one place to correct it.

Why?

No particular reason, other than the fact OAM will check whether distribution and activation of custom plug ins was done correctly, by checking a HeartBeat. This is SSL, whatever your settings.
You see the problem arising...
Even is no SSL configuration is available, the HeartBeat is SSL - and will fail.

<BEA-090898> <Ignoring the trusted CA certificate "CN=CertGenCA,OU=FOR TESTING ONLY,O=MyOrganization,L=MyTown,ST=MyState,C=US".
The loading of the trusted certificate list raised a certificate parsing exception PKIX:
Unsupported OID in the AlgorithmIdentifier object: 1.2.840.113549.1.1.11.>

The plugin status will get status "activation failed".

Workaround

Make sure your settings in the (optional...) Configure Servers, Clusters and Machines screens have "Secure" selected.
This configuration will prevent this error from happening.

Else, stop your Managed and Admin Servers, alter oam-config.xml: change "activation-failed status for the plugin(s) into activated, increase Version by 1, save oam-config.xml and start all servers again.
Mind you, this will bring down your services, and have impact on SLA times.

Peter Abé of Oracle figured this out, and it has been fixed as-of BP2

OAM 11GR2PS2 in a day

Get Access Manager 11gRel2 PS2 installed in a day

Goal is to get OAM installed and configured in a day - with full control; that is without using the Installation Wizard.

Virtual Box

Start with Virtual Box. Allow plenty of memory (10GB), and disk (120GB).
Attach V33411-01.iso (Oracle Server V6.3) to the CD, and boot.
Minimal (not Basic server!) install, configure network with static IP addresses, X-Windows support.
Reboot. Test if you can ping a public server (e.g. oracle.com). If not - rework your settings until you can.
I needed to install nfs:

yum install mount.nfs

Also, disable SELinux (edit /etc/selinux/config, it is self explanatory) Then, install prerequisites as described here.
Give the oracle user a directory to install into:

mkdir /oracle chown oracle:oinstall /oracle

Prepare

Start with the database, as described here.
Then, run the Repository Creation Utility:

[oracle@oam admin]$ /mnt/orainst/Software/OFM/11.1.2.2.0/V43024-RCU_x86-64/rcuHome/bin/rcu

Install

In particular, install OUD, WebLogic, OHS and IAM suite. Later, configure the lot.

Install OUD

Described in an earlier blog entry, but now the latest version.
It needs Java...

cd /oracle tar xvf /mnt/orainst/Software/java/server-jre-7u76-linux-x64.tar

It will create an jdk1.7.0_76 subdirectory under /oracle. Alter your /home/oracle/.bash_profile to include the following:

export JAVA_HOME=/oracle/jdk1.7.0_76/jre export PATH=$PATH:$JAVA_HOME/bin

You do need the kludge of editing refhost.xml as described in this entry. I know this can be solved by installing redhat-lsb-core (Thank you, Michichael), but I have problems installing it:

[root@oam ~]# yum install --skip-broken redhat-lsb-core Setting up Install Process Resolving Dependencies --> Running transaction check ---> Package redhat-lsb-core.x86_64 0:4.0-7.0.1.el6 will be installed ol6_latest/filelists | 47 MB 00:04 http://public-yum.oracle.com/repo/OracleLinux/OL6/latest/x86_64/repodata/filelists.xml.gz: [Errno -1] Metadata file does not match checksum

Finally, this should work without a glitch:

[oracle@oam ~]$ /mnt/orainst/Software/OFM/11.1.2.2.0/V43020-01/Disk1/runInstaller -jreLoc $JAVA_HOME Starting Oracle Universal Installer... Checking if CPU speed is above 300 MHz. Actual 3390 MHz Passed Checking Temp space: must be greater than 150 MB. Actual 39296 MB Passed Checking swap space: must be greater than 512 MB. Actual 5014 MB Passed

That's the result we're looking for.

Install WebLogic

Has been done before, look at this. Basically:

[oracle@oam ~]$ java -jar /mnt/orainst/Software/weblogic/wls1036_generic.jar Extracting 0%....................................................................................................100% Feb 25, 2015 2:21:26 PM java.util.prefs.FileSystemPreferences$1 run INFO: Created user preferences directory.

Choose Custom Install, do NOT select Coherence, or Demo Database.

OAM install

Here, too, you need to alter the refhost.xml file:

Then, fire up the installer, and it will not fail to identify the OS:

[oracle@oam ~]$ /mnt/orainst/Software/OFM/11.1.2.2.0/V43017/Disk1/runInstaller -jreLoc $JAVA_HOME Starting Oracle Universal Installer...

This takes some time, but below is what I want to see:

Ready for Configuration

First, I will configure the OUD. I'll keep it simple, just a single instance, no replication. OUD has some very nifty things, one of which is "Assured Replication". In a corporate environment, you want that!

OUD configuration

See also this entry.
My administrator is changed to cn=oudadmin; NO SPACES - spaces will cause troubles later-on. My root is dc=home, dc=local.
Some preparation needs to be done:

[oracle@oam ~]$ vi ./relax.sh [oracle@oam ~]$ chmod 750 relax.sh [oracle@oam ~]$ ./relax.sh [oracle@oam ~]$ cat relax.sh /oracle/middleware/asinst_1/OUD/bin/dsconfig -h oam.home.local -p 4444 \ -D "cn=oudadmin" -j ./pwdfile -n set-global-configuration-prop \ --set single-structural-objectclass-behavior:warn \ --trustAll [oracle@oam ~]$ ldapadd -h oam -p 1389 -D cn=oudadmin -q -f prepare_oud.ldif Please enter bind password: adding new entry cn=Users,dc=home,dc=local adding new entry cn=Groups,dc=home,dc=local adding new entry cn=systemids,dc=home,dc=local adding new entry cn=OracleAccounts,dc=home,dc=local adding new entry cn=Users,cn=OracleAccounts,dc=home,dc=local adding new entry cn=Groups,cn=OracleAccounts,dc=home,dc=local adding new entry cn=Reserve,cn=OracleAccounts,dc=home,dc=local [oracle@oam ~]$ cat prepare_oud.ldif dn:cn=Users,dc=home,dc=local cn:Users objectClass:top objectClass:orclContainer dn:cn=Groups,dc=home,dc=local cn:Groups objectClass:top objectClass:orclContainer dn: cn=systemids,dc=home,dc=local changetype: add objectclass: orclContainer objectclass: top cn: systemids dn: cn=OracleAccounts,dc=home,dc=local changetype: add objectclass: orclContainer objectclass: top cn: systemids dn:cn=Users,cn=OracleAccounts,dc=home,dc=local cn:Users objectClass:top objectClass:orclContainer dn:cn=Groups,cn=OracleAccounts,dc=home,dc=local cn:Groups objectClass:top objectClass:orclContainer dn:cn=Reserve,cn=OracleAccounts,dc=home,dc=local cn:Reserve objectClass:top objectClass:orclContainer

Mind you - that is the Oracle database ldapadd command. If you want to use the ldapmodify which comes with OUD, you will need to rework the ldif file.

Configure OAM

/oracle/middleware/oracle_common/common/bin/config.sh

Create a new Weblogic Domain, and select just the Entitlements Server for Admin server, Enterprise Manager, and Access Management. All other options will be selected automatically:

As I do not have a RAC install, no need for Grid Link conversion. In a corporate environment, you would not select Access manager yet, and convert the OPSS scheme to gridlink. Experience shows, you can just select all, and convert all to gridlink. You will have to watch out when you use a non-DEV prefix; select just one option, and alter the schema owner. Repeat until all schemas are done. You would just assign the Admin server to the Unix Machine. Instead, I just do:

In the Select optional Configuration, I choose to Modify Managed Servers; I create a Unix machine, and assign both Admin Server and managed Server oam_server1 to this machine.

Now it is time to execute the mandatory patch:

[oracle@oam ~]$ cd /oracle/middleware/oracle_common/bin [oracle@oam bin]$ ./psa Oracle Fusion Middleware Patch Set Assistant 11.1.1.7.0 Log file is located at: /oracle/middleware/oracle_common/upgrade/logs/psa2015-02-25-16-21-20PM.log UPGAST-00238: A dependency by component OIM on component SOA is unresolved. Upgrades of component OIM will be disabled. A dependent component was not found while discovering upgrade components and their dependencies. Make sure the required component has been installed.

Just select OPSS to upgrade:

Do not forget to enter "sys as sysdba" for the username...

Examine the logging in ../upgrade/logs, and make sure that the upgrade to 11.1.1.7.2 script is called successfully. If you do NOT see this script being called, don't bother: erase and start all over again!

... ParseNexecute Script: /oracle/middleware/oracle_common/common/sql/opss/oracle/upgrade/opss_upgrade_111162_111172.sql [2015-02-25T16:23:56.364+01:00] [RCU] [TRACE] [] [upgrade.RCU.jdbcEngine] [tid: 30] [ecid: 0000Kj1L_N^EOPWFLz3V8A1KvUXk000004,0] Adding alter statement to list:ALTER SESSION SET CURRENT_SCHEMA=DEV_OPSS [2015-02-25T16:23:56.437+01:00] [OPSS] [NOTIFICATION] [UPGCMP-05602] [upgrade.OPSS.OPSS1] [tid: 30] [ecid: 0000Kj1L_N^EOPWFLz3V8A1KvUXk000004,0] OPSS database schema successfully updated. [2015-02-25T16:23:56.439+01:00] [OPSS] [NOTIFICATION] [UPGCMP-05604] [upgrade.OPSS.OPSS1] [tid: 30] [ecid: 0000Kj1L_N^EOPWFLz3V8A1KvUXk000004,0] OPSS database schema is valid after update. [2015-02-25T16:23:56.440+01:00] [Framework] [NOTIFICATION] [] [upgrade.Framework] [tid: 30] [ecid: 0000Kj1L_N^EOPWFLz3V8A1KvUXk000004,0] Component ID=OPSS, Schema=DEV_OPSS, Schema version=11.1.1.7.2, Status=VALID, Upgraded=true

Starting up...

Create the boot.properties file, so that the AdminServer starts without prompting for account info. You enter user and password in plain text, but the file gets encrypted at the first start:

[oracle@oam bin]$ cd /oracle/user_projects/domains/oam_domain/ [oracle@oam oam_domain]$ mkdir -p servers/AdminServer/security [oracle@oam oam_domain]$ vi servers/AdminServer/security/boot.properties

It is necessary to establish the security configuration between the domain and the database. Switch to the /oracle/middleware/oracle_common/common/bin directory, and issue the following wlst command:

[oracle@oam oam_domain]$ cd /oracle/middleware/oracle_common/common/bin [oracle@oam bin]$ ./wlst.sh /oracle/middleware/Oracle_IDM1/common/tools/configureSecurityStore.py \ > -d /oracle/user_projects/domains/oam_domain -c IAM -m create -p

Here, too, it is of critical importance that you see lines like below, and -at the end- a success message:

Feb 25, 2015 4:41:08 PM oracle.security.jps.internal.config.ldap.LdapAuditServiceConfigurator schemaCompatibleHandler INFO: Audit store schema upgrade not required. Store Schema version 11.1.1.7.2 is compatible to the seed schema version 11.1.1.4.0 ... ... Credential store location : jdbc:oracle:thin:@oam.home.local:1521/oam.home.local Credential with map Oracle-IAM-Security-Store-Diagnostics key Test-Cred stored successfully! Credential for map Oracle-IAM-Security-Store-Diagnostics and key Test-Cred is: GenericCredential Info: diagnostic credential created in the credential store. Info: Create operation has completed successfully.

You should now be able to start the AdminServer:

[oracle@oam bin]$ cd /oracle/user_projects/domains/oam_domain/ [oracle@oam oam_domain]$ ./startWebLogic.sh

If you want this to be speedy, give it more memory to use; the defaults are quite pathetic...

export USER_MEM_ARGS="-Xms1536m -Xmx2048m -XX:MaxPermSize=512m"

You may want to add this line to your .bash_profile file, to make sure it is set on logon time.

Configure OAM to use OUD, and more...

Ok, there are some things to configure when you want to use OAM in a corporate environment; you want OUD the be used, and you want WebLogic to use OUD as well.
Two steps are involved (see the Enterprise Delopyment Guide, here, as long as this version lasts - Oracle tends to alter links, nowadays.)
Create two configuration files, idstore.props, and config_oam.props:

# Start idstore.props IDSTORE_HOST: oam.home.local IDSTORE_PORT: 1389 IDSTORE_ADMIN_PORT: 4444 IDSTORE_KEYSTORE_FILE: /oracle/middleware/asinst_1/OUD/config/admin-keystore IDSTORE_KEYSTORE_PASSWORD: FoWK9RFOQVjok3XF78gyD05BZ1PAI80sPcqQMlRGtcWp0Ly6SD IDSTORE_BINDDN: cn=oudadmin IDSTORE_GROUPSEARCHBASE: cn=Groups,cn=oracleAccounts,dc=home,dc=local IDSTORE_SEARCHBASE: dc=home,dc=local IDSTORE_USERNAMEATTRIBUTE: cn IDSTORE_LOGINATTRIBUTE: uid IDSTORE_USERSEARCHBASE: cn=Users,cn=oracleAccounts,dc=home,dc=local IDSTORE_NEW_SETUP: true POLICYSTORE_SHARES_IDSTORE: true # OAM IDSTORE_OAMADMINUSER:oamadmin IDSTORE_OAMSOFTWAREUSER:oamLDAP OAM11G_IDSTORE_ROLE_SECURITY_ADMIN:OAMAdministrators # OAM and OIM IDSTORE_SYSTEMIDBASE: cn=systemids,dc=home,dc=local # OIM #IDSTORE_OIMADMINGROUP: OIMAdministrators #IDSTORE_OIMADMINUSER: oimLDAP # WebLogic IDSTORE_WLSADMINUSER : weblogic_idm IDSTORE_WLSADMINGROUP : WLSAdmins ### end idstore.props ############### ### start config_oam.props # Note: Two parameter settings determine whether you are # configuring Access Manager with Oracle Identity Manager integration # or Access Manager alone. # To configure Access Manager with Oracle Identity Manager # integration, set OAM11G_OIM_INTEGRATION_REQ to true and # specify a value for OAM11G_OIM_OHS_URL. # To configure Access Manager without Oracle Identity Manager, # set OAM11G_OIM_INTEGRATION_REQ to false. # These parameters are used to add extra links, such as Forgotten # Password, to the Access Manager credential collection page # If you configure Access Manager without Oracle Identity Manager, # then decide to add Oracle Identity Manager at a later date, you must # run this command again to configure Access Manager with Oracle # Identity Manager integration. WLSHOST: oam.home.local WLSPORT: 7001 WLSADMIN: weblogic WLSPASSWD: weblog1c IDSTORE_DIRECTORYTYPE: OUD IDSTORE_HOST: oam.home.local IDSTORE_PORT: 1389 IDSTORE_BINDDN: cn=oudadmin IDSTORE_USERNAMEATTRIBUTE: cn IDSTORE_LOGINATTRIBUTE: uid OAM11G_SERVER_LOGIN_ATTRIBUTE: uid IDSTORE_USERSEARCHBASE: cn=Users,cn=oracleAccounts,dc=home,dc=local IDSTORE_SEARCHBASE: cn=oracleAccounts,dc=home,dc=local IDSTORE_GROUPSEARCHBASE: cn=Groups,cn=oracleAccounts,dc=home,dc=local IDSTORE_SYSTEMIDBASE: cn=systemids,dc=home,dc=local IDSTORE_OAMSOFTWAREUSER: oamLDAP IDSTORE_OAMADMINUSER: oamadmin PRIMARY_OAM_SERVERS: oam.home.local:5575 WEBGATE_TYPE: ohsWebgate11g ACCESS_GATE_ID: AdminWG # OAM11G_OIM_WEBGATE_PASSWD: password to be assigned to WebGate COOKIE_DOMAIN: .poc.local OAM11G_WG_DENY_ON_NOT_PROTECTED: true OAM11G_IDM_DOMAIN_OHS_HOST: webgate.home.local OAM11G_IDM_DOMAIN_OHS_PORT: 7777 OAM11G_IDM_DOMAIN_OHS_PROTOCOL: http OAM11G_SERVER_LBR_HOST: wegbate.home.local OAM11G_SERVER_LBR_PORT: 7777 OAM11G_SERVER_LBR_PROTOCOL: http OAM11G_OAM_SERVER_TRANSFER_MODE: open OAM_TRANSFER_MODE: open OAM11G_IDM_DOMAIN_LOGOUT_URLS:/console/jsp/common/logout.jsp,/em/targetauth/emaslogout.jsp OAM11G_IDSTORE_ROLE_SECURITY_ADMIN: OAMAdministrators OAM11G_IDSTORE_NAME: OUDInternalStore OAM11G_SSO_ONLY_FLAG: false COOKIE_EXPIRY_INTERVAL: 120 OAM11G_IMPERSONATION_FLAG: false OAM11G_OIM_INTEGRATION_REQ: false # OAM11G_OIM_OHS_URL:https://ZZZZZZ.home.local:443 SPLIT_DOMAIN:true

I am not going into any detail - see the manuals what these variables mean. Just pointing out TRANSFER_MODE would be simple, or even certificate, in a corporate environment - it makes sure Oracle Access Protocol (OAP) is used to encrypt traffic between OAM and the Webgates.
This *may* affect the ease of connecting Mobile Apps, so I will leave it at "OPEN" for now.
Run the wizards:

export MW_HOME=/oracle/middleware export ORACLE_HOME=/oracle/middleware/Oracle_IDM1 echo $JAVA_HOME cd /oracle/middleware/Oracle_IDM1/idmtools/bin/ ./idmConfigTool.sh -preConfigIDStore input_file=~/idstore.props ./idmConfigTool.sh -prepareIDStore mode=WLS input_file=~/idstore.props ./idmConfigTool.sh -prepareIDStore mode=OAM input_file=~/idstore.props [oracle@oam bin]$ ./idmConfigTool.sh -configOAM input_file=~/config_oam.props Enter ID Store Bind DN password : Enter User Password for OAM11G_IDM_DOMAIN_WEBGATE_PASSWD: Confirm User Password for OAM11G_IDM_DOMAIN_WEBGATE_PASSWD: Enter User Password for IDSTORE_PWD_OAMSOFTWAREUSER: Confirm User Password for IDSTORE_PWD_OAMSOFTWAREUSER: Enter User Password for IDSTORE_PWD_OAMADMINUSER: Confirm User Password for IDSTORE_PWD_OAMADMINUSER: Connecting to t3://oam.home.local:7001 Connection to domain runtime mbean server established Starting edit session Edit session started Connected to security realm. Validating provider configuration Validated desired authentication providers Created OAMIDAsserter successfuly Created OUDAuthenticator successfuly Setting attributes for OUDAuthenticator All attributes set. Configured inOUDAuthenticatornow LDAP details configured in OUDAuthenticator Control flags for authenticators set sucessfully Reordering of authenticators done sucessfully Saving the transaction Transaction saved Activating the changes Changes Activated. Edit session ended. Connection closed sucessfully The tool has completed its operation. Details have been logged to automation.log

As you can see the last command reconfigures WebLogic; you will have to stop and start the stack...(and no: spelling errors do appear, this is cut-n-paste)
Then, change the WebLogic Identity Providers; log on to the weblogic console (at http://yourhost:7001/console), navigate to Security Realms, myrealm:
First of all, make sure all of them are SUFFICIENT, not REQUIRED. REQUIRED means this authentication step must be satisfied, despite all others. I find one is enough.

Change REQUIRED to SUFFICIENT.
Repeat for all providers:

Bug 13824816 workaround

After restarting, log on to the WLS Console, and navigate to myrealm again. Open the "Roles and Policies" tab, expand Global Roles, and then Roles:

Click on the Roles link, and add OAMAdministrators and WLSAdmins as groups:

Modify access, and make yourself administrator

First, add yourself to the group of internal users (cn=Users,cn=OracleAccounts,dc=home,dc=local); create a file with the following contents:

dn: cn=frank,cn=Users,cn=OracleAccounts,dc=home,dc=local objectclass: orcluserV2 objectclass: person objectclass: inetorgperson objectclass: organizationalPerson objectclass: orcluser objectclass: top givenName: Frank uid: frank cn: frank sn: Van Bortel userPassword: ****** mail: ******* orclSAMAccountName: frank

Load it into ldap:

[oracle@oam ~]$ /oracle/db/product/11.2.0/bin/ldapadd -h oam -p 1389 -D cn=oudadmin -q -f ./frank.ldif Please enter bind password: adding new entry cn=frank,cn=Users,cn=OracleAccounts,dc=home,dc=local

Now, create the following ldif file, and load it into the LDAP server:

dn: cn=WLSAdmins,cn=Groups,cn=oracleAccounts,dc=home,dc=local changetype: modify add: uniquemember uniquemember: cn=frank,cn=Users,cn=OracleAccounts,dc=home,dc=local dn: cn=OAMAdministrators,cn=Groups,cn=oracleAccounts,dc=home,dc=local changetype: modify add: uniquemember uniquemember: cn=frank,cn=Users,cn=OracleAccounts,dc=home,dc=local [oracle@oam ~]$ /oracle/db/product/11.2.0/bin/ldapmodify -h oam -p 1389 -D cn=oudadmin -q -f ./add_frank.ldif Please enter bind password: modifying entry cn=WLSAdmins,cn=Groups,cn=oracleAccounts,dc=home,dc=local modifying entry cn=OAMAdministrators,cn=Groups,cn=oracleAccounts,dc=home,dc=local

You should now be able to see yourself in the list of users in Weblogic. Even better, you should be able to log on with your own account (as defined in frank.ldif):

If the above does not work, check the OUDAuthenticator properties; it should be defined as an iPlanet directory server (that is what Sun called it, before Oracle bought Sun, and renamed the by then called Sun Enterprise Directory Server to ODSEE, and then to OUD).
It usually gets -oh magic- defined as an Open LDAP server. It has definition errors, one of which is in group definition; it uses GroupOfNames, not GroupOfUniqueNames (capitalization not needed). If you find that your group search uses wrong attribute names, make sure to correct that.
You should be able to see that your account belongs the WLSAdmins group (as well as the OAMAdministrators).

The faulty attribute names prevent that.

You should also be able to log on to the OAM Administration Console (at http://oam.home.local:7001/oamconsole) with your personal account, and discover you now have 5 webgates!

Webgate install

In the configuration wizard part, I specified OAM11G_SERVER_LBR_HOST: wegbate.home.local. That does not exist, yet.
This is how to install a webgate (assuming you have downloaded WebTier V11.1.1.7, and V43022: WebGates 11.1.2.2.0):
Start the installer to install the Oracle HTTP server:

/mnt/orainst/Software/OFM/WebTier/11.1.1.7.0/Disk1/runInstaller

Skip the updates, choose "Install Software - do NOT configure"
Leave all else default, done.
Now, it is time for the WebGate software:

/mnt/orainst/Software/OFM/11.1.2.2.0/V43022-01/Disk1/runInstaller -jreLoc /oracle/jdk1.7.0_76/jre

Skip the software updates, ignore checks, leave all default, done.

Configure

/oracle/middleware/Oracle_WT1/bin/config.sh

Deselect all, but the HTTP server; I don want the overhead of WebCache, or WebLogic server and domains.
Change the install directory to /oracle/middleware/Oracle_WT1/ecc1, and the instance name accordingly: ecc1. Next, no updates, configure, done.

You should now have a response when you point the browser to oam:7777.

Time for a virtual host

I need to rework the OHS to respond to webgate:7777, not oam:7777.
In order to do that, I need to add that as an alias to the hosts file, /etc/hosts.
Change:

192.168.4.222 oam oam.home.local

into:

192.168.4.222 oam oam.home.local webgate webgate.home.local

I can now browse to http://oam:777/index.html, or webgate:7777/index.html.
However, in order to make sure all redirects, etc, end up where thet came from, I need to tell the HTTP server webgate.home.local is a valid name, too.
The configuration now simply states listen to all addresses, port 7777. That is not how things ought to be.
So, alter the Listen directive in httpd.conf:

# OHS Listen Port Listen oam.home.local:7777

Move to the moduleconf directory, and move plsql.conf to ../disabled/
Then, create a vh.conf file with the following content:

<VirtualHost *:7778> ServerName webgate.home.local RewriteEngine On RewriteOptions inherit ServerAdmin me@home.local # DocumentRoot "${ORACLE_INSTANCE}/config/${COMPONENT_TYPE}/${COMPONENT_NAME}/webgate" </VirtualHost>

I just redefined the virtual host to listen to another port, too. Just to show the difference between the default host, and the virtual host.

Configure the WebGate

Circumvent “a known bug for 11.1.2.2.0 OHS Webgate” (Doc ID 1678062.1):

cd /tmp /oracle/jdk1.7.0_76/bin/jar xvf /mnt/orainst/Software/OFM/11.1.2.2.0/V43022-01/Disk1/stage/Components/oracle.as.oam.webgate.ohs_linux64/11.1.2.2.0/1/DataFiles/filegroup1.jar webgate/ohs/lib/libxmlengine.so /oracle/jdk1.7.0_76/bin/jar xvf /mnt/orainst/Software/OFM/11.1.2.2.0/V43022-01/Disk1/stage/Components/oracle.as.oam.webgate.ohs_linux64/11.1.2.2.0/1/DataFiles/filegroup1.jar webgate/ohs/lib/webgate.so /oracle/jdk1.7.0_76/bin/jar xvf /mnt/orainst/Software/OFM/11.1.2.2.0/V43022-01/Disk1/stage/Components/oracle.as.oam.webgate.ohs_linux64/11.1.2.2.0/1/DataFiles/filegroup1.jar webgate/ohs/tools/setup/InstallTools/EditHttpConf cp webgate/ohs/lib/* /oracle/middleware/Oracle_OAMWebGate1/webgate/ohs/lib/ cp webgate/ohs/tools/setup/InstallTools/EditHttpConf /oracle/middleware/Oracle_OAMWebGate1/webgate/ohs/tools/setup/InstallTools/

Of course, your directory structure may differ...

cd /oracle/middleware/Oracle_OAMWebGate1/webgate/ohs/tools/deployWebGat ./deployWebGateInstance.sh -w /oracle/middleware/Oracle_WT1/ecc1/config/OHS/ohs1 -oh /oracle/middleware/Oracle_OAMWebGate1

Response: Copying files from WebGate Oracle Home to WebGate Instancedir

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/oracle/middleware/Oracle_WT1/lib:/oracle/middleware/Oracle_OAMWebGate1/webgate/ohs/lib/ cd /oracle/middleware/Oracle_OAMWebGate1/webgate/ohs/tools/setup/InstallTools ./EditHttpConf -w /oracle/middleware/Oracle_WT1/ecc1/config/OHS/ohs1 -oh /oracle/middleware/Oracle_OAMWebGate1/

Response: The web server configuration file was successfully updated /oracle/middleware/Oracle_WT1/ecc1/config/OHS/ohs1/httpd.conf has been backed up as /oracle/middleware/Oracle_WT1/ecc1/config/OHS/ohs1/httpd.conf.ORIG

If you now point to webgate:777/index.html, you will get an HTTP-500 status back: Internal Server Error. This is due to the fact wegbate ecc1 is now active, but there is no connection to the OAM server. Yet.

So, not in a day...

OK, it's been a long day, and not everything is done yet. But you do have a framework; OAM is there, as well as OUD and the database (which is used for Authentication (AuthN) and Authorization (AuthZ) Policies, by the way).
Left to be done is the registration of the WebGate in OAM, and fixing the Perl-based login pages, so that I can actually see a resource being protected.
The difference between Embedded Credential Collector (ECC) as one mechanism, and Detached Credential Collector (DCC) with a Resource Protecting Webgate (RPW) as another is also left for tomorrow. Well... another entry.

Je suis Charlie

Bien sûr, moi aussi, je suis Charlie, moi.
